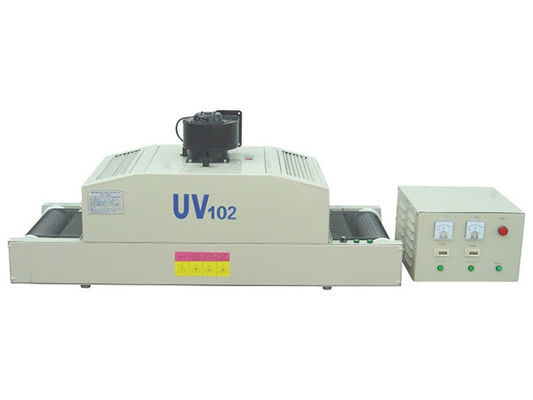

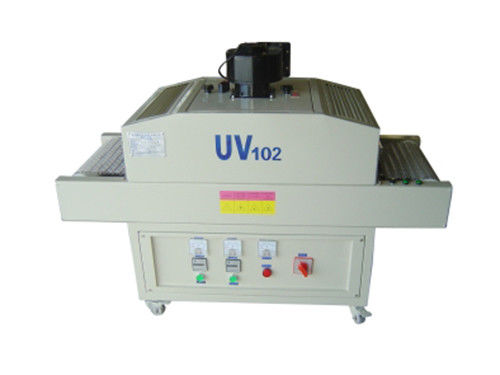

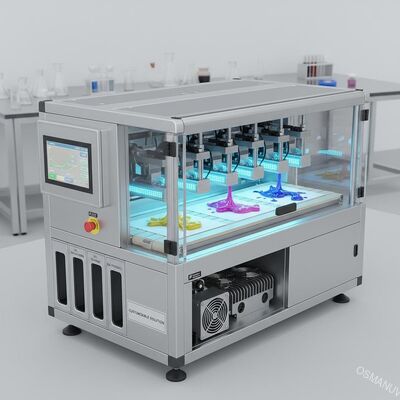

Cold Cure LED UV Curing System for Heat-Sensitive Substrates，R&D, Oil Paint Curing- Customizable Solution
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | OSMANUV |
| Certificação: | ISO9001 |

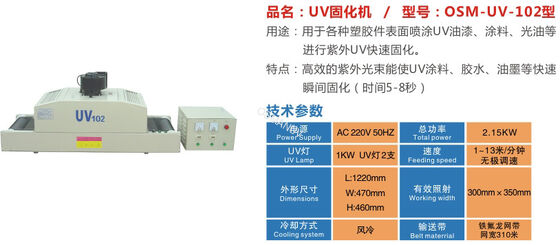

| Número do modelo: | OSM-UV-102 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Caixa de madeira |
| Tempo de entrega: | 30 a 45 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Negociação |
|
Informação detalhada |
|||
| MachineType: | coater uv | Área de revestimento: | Grande área |
|---|---|---|---|
| Potência total: | 2.15kw | Indústrias Aplicáveis: | Fábrica |
| Aplicação: | Papel, papelão, plástico, chapas metálicas | Componentes principais: | Motor, motor |
| Automatização de revestimentos: | Alta automação | Trabalhando em larga escala: | 300*350mm |
Descrição de produto
Cold Cure LED UV Curing System for Heat-Sensitive Substrates ,R&D, Oil Paint Curing- Customizable Solution
Product Description:
This Cold Cure LED UV Curing System is specifically engineered for instantaneous curing of solvent-based coatings on heat-sensitive materials like furniture panels and clothing labels. It generates minimal infrared radiation, preventing heat damage to delicate substrates while ensuring a hard, durable, and scratch-resistant finish. The system is fully customizable to match your production line requirements.
Composition of Production Line:
-
Infeed Conveyor
-
LED UV Curing Module with Water Cooling System
-
Power Supply & Control Cabinet
-
Outfeed Conveyor
-
PLC with Touch Screen HMI
Technical Parameters:
| Parameter | Details |
|---|---|
| Model | LCU-Cold Series (Fully Customizable) |
| LED Wavelength | 365nm, 385nm, 395nm, 405nm (Selectable) |
| UV Intensity | Up to 8000 mW/cm² (Peak, Customizable) |
| Effective Cure Width | 300mm, 600mm, 1000mm (Customizable) |
| Conveyor Speed | 0-50 m/min (Adjustable) |
| Power Supply | 380V/220V (Customizable) |
| Cooling System | Closed-loop Water Cooling |
Application:
Instant curing of solvent-based coatings on furniture panels, MDF, clothing labels, plastic films, and other heat-sensitive substrates.
Customization:
We offer extensive customization including curing width, UV wavelength and intensity, conveyor type, and integration with your existing coating line.
Feature:
-
Cold cure process protects heat-sensitive materials.
-
Instantaneous curing significantly boosts production speed.
-
Fully customizable UV intensity and wavelength.
-
Low operating cost & energy consumption.
-
Long LED lifespan (>20,000 hours).
Support and Services:
We provide installation supervision, operator training, remote technical assistance, and readily available spare parts.
Packing and Shipping:
The system is securely packed in export-worthy wooden cases for safe ocean freight and land transportation.
FAQ:
-
Q: Can this system cure thick layers of solvent-based coating?
A: Yes, the system can be customized with higher intensity LEDs and optimized wavelength to ensure complete curing through the coating layer. -
Q: What is the lifespan of the LED modules?
A: Typical lifespan exceeds 20,000 hours, significantly reducing maintenance costs compared to traditional UV systems.
