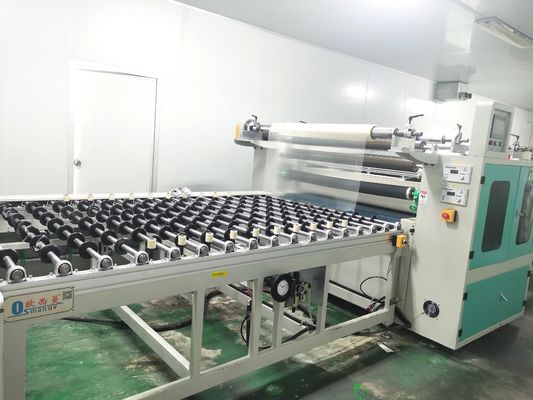

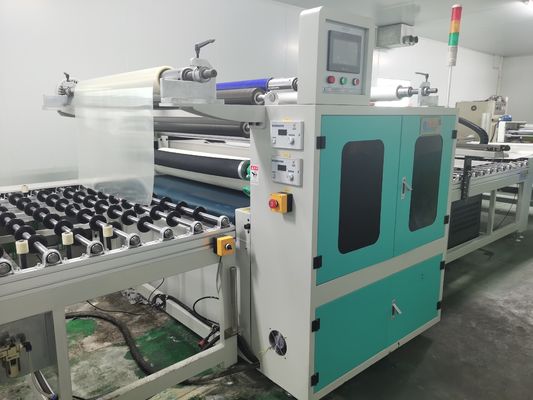

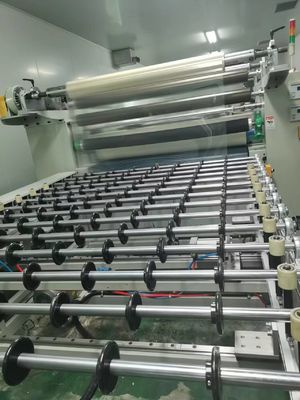

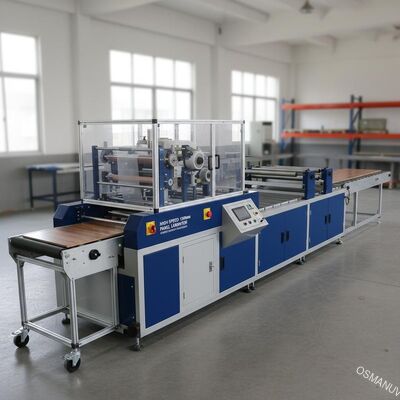

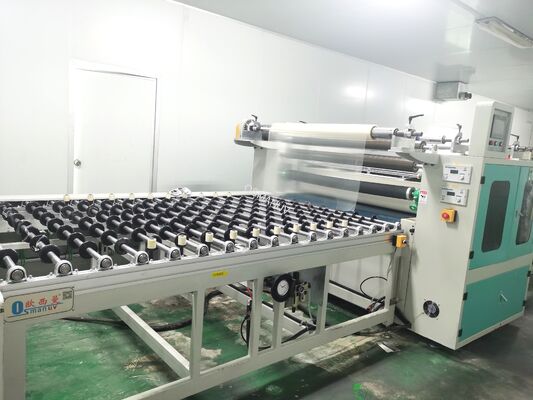

High Speed 1300mm Wide Panel Laminating Machine for Scratch Resistant Furniture Surfaces
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | OSMANUV |
| Certificação: | ISO9001 |
| Número do modelo: | OSM-FMJ-1300I |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Embalagem de madeira |
| Tempo de entrega: | 30 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Negociação |
|
Informação detalhada |
|||
| Dimensão (C*L*A): | Tamanho personalizado, 6300 mm × 1550 mm × 1200 mm | Largura efetiva: | 1300 mm |
|---|---|---|---|
| Tensão: | 380V/50Hz | Transporte de velocidade: | ajustável, 1-20 m/min, pode ser definido por você mesmo |
| Poder: | 1,5 kW | Serviço pós-venda fornecido: | Coordenadores disponíveis para prestar serviços de manutenção no ultramar à maquinaria, suporte labo |
| Doença: | NOVO | Garantia: | 1 ano |
| Destacar: | 1300mm wide panel laminating machine,high speed film laminating machine,scratch resistant furniture laminating machine |
||
Descrição de produto
High Speed 1300mm Wide Panel Laminating Machine for Scratch Resistant Furniture Surfaces
Product Description:
This high-speed laminating machine is engineered for applying protective films to large furniture panels up to 1300mm wide. It ensures a flawless, bubble-free finish that provides a durable, scratch-resistant surface for furniture during storage and transport. The dual-station unwinding system allows for continuous, non-stop operation, significantly boosting production line efficiency for furniture manufacturers.
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Model | OSM-FMJ-1300Ⅰ |
| 2 | Effective Working Width | 1300 mm |
| 3 | Max. Conveying Speed | 20 m/min |
| 4 | Conveying Thickness Range | 3-80 mm |
| 5 | Minimum Panel Length | 300 mm |
| 6 | Main Roller Material | Silicone Roller |
| 7 | Drive System | Taiwan Delta Inverter Control |
| 8 | Total Power | 1.5 kW |
| 9 | Voltage | 380V, 50Hz, 3-Phase |
| 10 | Overall Dimensions | 6300mm × 1550mm × 1200mm |
Application:
Ideal for applying protective films to MDF, particle board, melamine panels, finished wooden doors, and large-format furniture components.
Customization:
We offer customizable roller hardness and pressure settings to perfectly match different film types and panel substrates, ensuring optimal adhesion without damage.
Feature:
-
Dual-station film unwinding for zero-downtime operation.
-
High-precision automatic film cutting system.
-
Robust construction with dynamically balanced drive wheels for vibration-free performance.
-
Schneider electrical components ensure reliability.
Support and Services:
-
One-year machine warranty, half-year for electrical components.
-
On-site installation and commissioning services available (service fee applies).
-
Lifetime technical support and remote assistance.
Packing and Shipping:
The machine is securely packed in an export-worthy wooden crate. Delivery lead time is 30 working days after receiving full payment. Shipping terms are FOB.
FAQ:
-
Q: Can this machine handle both glossy and matte finish protective films?
A: Yes, the roller pressure and speed are adjustable and customizable to suit various film finishes without causing marks or bubbles. -
Q: What is the maximum production throughput?
A: At the maximum speed of 20 meters per minute, the theoretical throughput is very high, but the effective output depends on panel size and operator speed for loading/unloading.
