High Capacity Folding Drying Line for Cement Fiberboard with 30 Percent Floor Space Saving
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | OSMANUV |
| Certificação: | ISO9001 |
| Número do modelo: | OSM-GLDM-1320T |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Embalagem de madeira |
| Tempo de entrega: | 45 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Negociação |
|
Informação detalhada |
|||
| Dimensão (C*L*A): | Tamanho personalizado, 60000*2540*1680mm;60000*2000*1680mm; | Largura efetiva: | 1320mm,920mm,620mm |
|---|---|---|---|
| Temperatura: | temperatura ambiente-800℃ | Umidade: | 50±10°C |
| Nota automática: | Automático/semi-automático | Velocidade de revestimento: | ajustável, 0,1-1 metros/min |
| Garantia: | 1 ano | Doença: | NOVO |
| Destacar: | high capacity folding drying line,cement fiberboard drying machine,space saving industrial drying line |
||
Descrição de produto

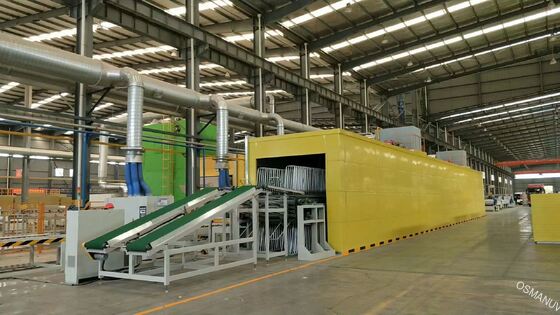

High Capacity Folding Drying Line for Cement Fiberboard with 30 Percent Floor Space Saving
Product Description:
This high-capacity folding drying line is specifically engineered for the efficient and uniform drying of cement fiberboards. Its unique multi-layer "folding" conveyor design significantly reduces the factory footprint by up to 30% compared to traditional straight-line dryers, while maintaining a high throughput. It ensures consistent moisture removal across the entire board surface, preventing warping and ensuring product quality for large-scale production.
Technical Parameters:
| No. | Parameter Name | Specification |
|---|---|---|
| 1 | Product Name | Folding Drying Line for Cement Fiberboard |
| 2 | Heating Method | Indirect Hot Air / IR / Gas (Customizable) |
| 3 | Total Drying Length | 40-100 Meters (Customizable) |
| 4 | Effective Belt Width | 1300 mm / 1500 mm / 1800 mm (Customizable) |
| 5 | Number of Tiers | 3-5 Tiers (Customizable) |
| 6 | Drying Temperature Range | Ambient - 200°C |
| 7 | Conveyor Speed | 0.5 - 5 m/min (Stepless Control) |
| 8 | Heat Source | Natural Gas / Diesel / Electric |
| 9 | Control System | PLC + Touch Screen HMI |
| 10 | Total Installed Power | ~120 kW (Varies with size) |
Application:
Ideal for drying and curing coated or uncoated cement fiberboards, calcium silicate boards, and other flat panel materials in high-volume manufacturing plants.
Customization:
This is a fully customizable system. We can tailor the total length, number of tiers, heating zones, temperature profile, and belt width to perfectly match your production capacity, board dimensions, and specific process requirements.
Feature:
-
Compact folding design saves significant factory floor space.
-
Zoned temperature control for optimized drying curves.
-
Robust conveyor system ensures smooth board handling without damage.
-
High thermal efficiency with excellent insulation minimizes energy consumption.
Support and Services:
-
One-year warranty on the entire line.
-
On-site installation, commissioning, and operator training.
-
Lifetime technical support and remote diagnostics.
Packing and Shipping:
The line is disassembled into modules, securely packed in weather-proof wooden crates for sea freight. Delivery lead time is 70-90 days based on configuration. FOB or CIF terms available.
FAQ:
-
Q: How much space does this folding dryer save compared to a straight tunnel dryer?
A: Typically 30-50%, depending on the number of tiers. A 60-meter effective drying length might only occupy a 20-meter floor length with a 3-tier design. -
Q: Can you configure different temperatures for different sections?
A: Absolutely. The line features multiple independent customizable heating zones, allowing for a precise drying curve from entry to exit (e.g., pre-heat, main drying, cooling).
