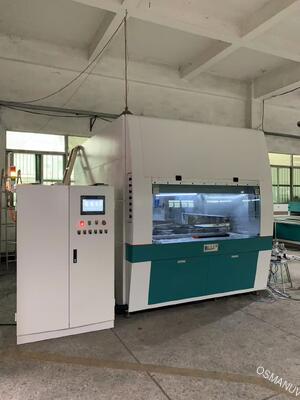

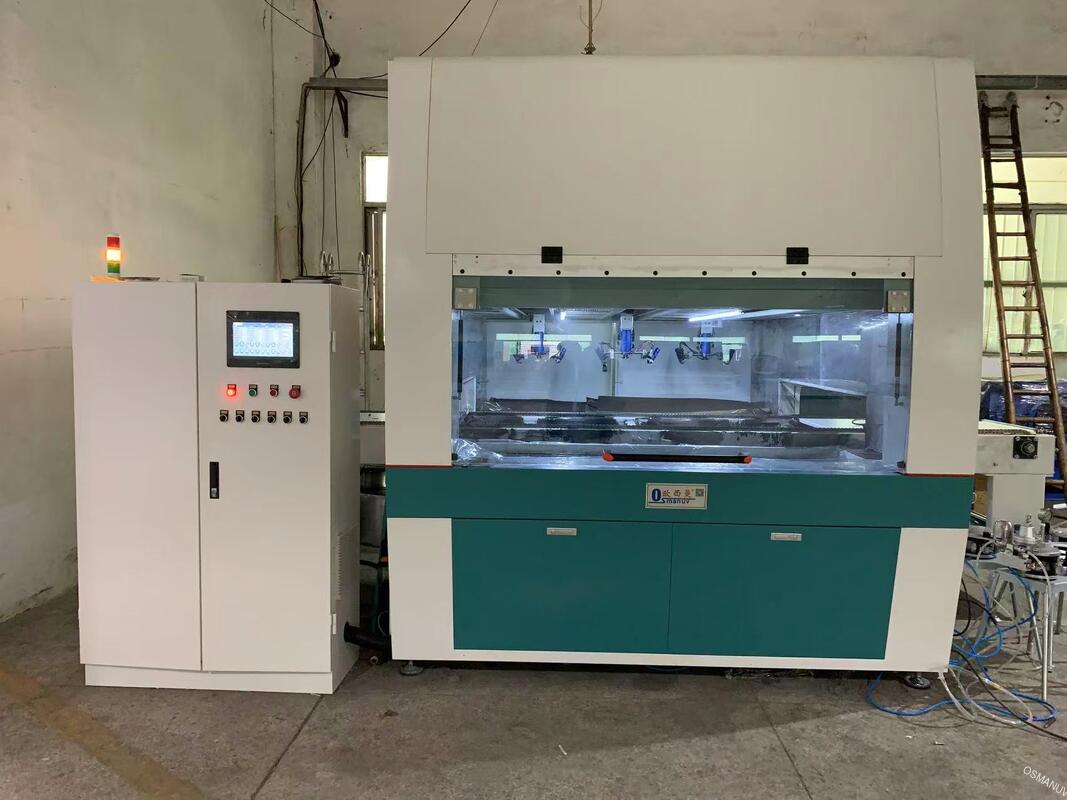

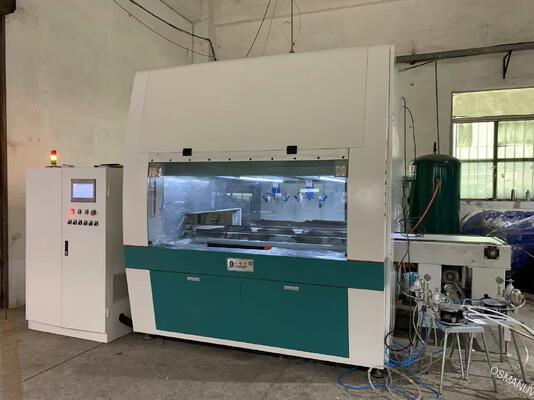

High-Precision Robotic Internal Coating Spraying System for Molded Pulp Packaging
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | OSMANUV |
| Certificação: | ISO9001 |
| Número do modelo: | OSM-PT-1320 |
| Documento: | automatic spray coating mac...ne.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | CAIXA DE MADEIRA |
| Tempo de entrega: | 30 ~ 40 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Negociação |
|
Informação detalhada |
|||
| Durabilidade do revestimento: | Alta durabilidade | Altura da pilha de entrega: | 1100 mm |
|---|---|---|---|
| Largura eficaz: | 1300 mm | componentes principais: | PLC, rolamento, motor, bomba |
| Ambiente da operação: | Temperatura: 15-35°C, Umidade: 20%-60% | De forma seca.: | Lâmpada ultravioleta |
| pistola de pulverização: | Arma automática | Tensão: | 380V/50HZ, pode ser ajustável |
Descrição de produto
High-Precision Robotic Internal Coating Spraying System for Molded Pulp Packaging
Composition of Production Line
-
Robotic spraying arm (6-axis)
-

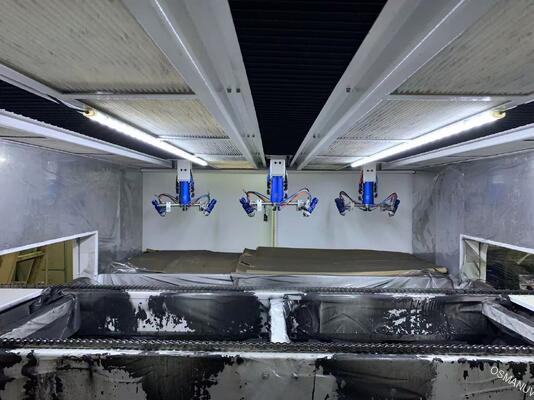

High-pressure airless spray gun
-

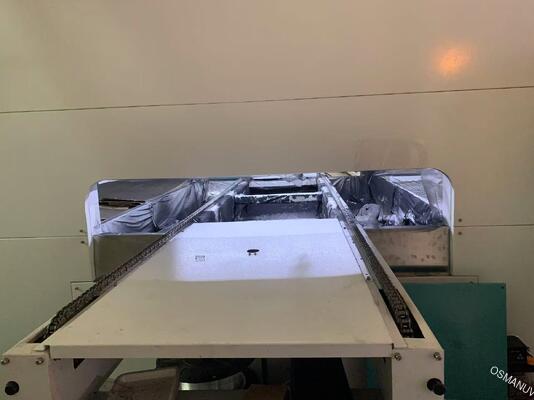

Conveyor belt system with workpiece positioning sensors
-
Automatic paint supply & circulation system
-
PLC control panel with HMI touch screen
-
Exhaust & ventilation unit (explosion-proof)
-
Paint recovery & waste treatment module
Product Description
This automatic internal coating spraying equipment is specifically designed for molded pulp industrial packaging (e.g., egg trays, fruit trays, electronic cushioning packaging). It uses programmable robotic arms to evenly apply water-based or solvent-based functional coatings (waterproof, oil-proof, anti-static) onto the inner surface of pulp molded products. The system ensures consistent film thickness, reduces overspray, and increases coating material utilization by up to 40%. Ideal for medium to large-scale production lines.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | RICS-MP680 |
| Max. workpiece size (L×W×H) | 800×600×300 mm |
| Coating speed | 0–1500 mm/s (adjustable) |
| Repeat positioning accuracy | ±0.05 mm |
| Spray gun type | Airless / HVLP (optional) |
| Coating material viscosity range | 20–500 cP |
| Power supply | 380V/50Hz, 3-phase |
| Air consumption | 0.6–0.8 MPa, 1.2 m³/min |
| Overall dimensions (L×W×H) | 3200×1800×2200 mm |
| Weight | 1850 kg |
Application
-
Molded pulp industrial packaging: electronic product trays, medical device packaging, industrial shock-absorbing liners
-
Internal surface coating for water/oil/grease resistance
-
Anti-static or anti-corrosion coating for special storage requirements
Customization
Every system is fully customizable: we can adjust robot arm reach, number of spray guns, conveyor width, coating material compatibility, control software interface, and integration with existing production lines. Custom jigs/fixtures for non-standard workpiece shapes are also available.
Feature
-
Vision-guided path planning for complex 3D internal surfaces
-
Automatic nozzle cleaning and anti-clogging design
-
Real-time flow rate and pressure monitoring
-
Energy-saving recirculation of unused coating
-
Easy-to-use recipe management (store 100+ product profiles)
-
Stainless steel construction for corrosion resistance
Support and Services
-
24/7 online remote troubleshooting
-
On-site installation & commissioning
-
Operator training (video manuals + in-person)
-
12-month warranty, lifetime spare parts supply
-
Annual maintenance contract available
Packing and Shipping
-
Packed in plywood export crates with anti-rust film
-
Seaworthy packaging, suitable for container shipping (40’HC)
-
Delivery: FOB Shanghai or CIF term
-
Shipping weight ≈ 2100 kg, volume ≈ 12 m³
FAQ
Q: Can the system coat very deep internal cavities?
A: Yes, with optional extended nozzle and articulated robot arm – customizable reach up to 500 mm.
Q: What types of coatings are compatible?
A: Water-based acrylic, silicone, wax emulsions, solvent-based lacquers, and UV-curable coatings.
Q: How long does it take to switch between different product shapes?
A: Less than 5 minutes via recipe recall and quick-change tooling (customizable quick-clamp jigs).
