Automatic Embossing Pressing Machine with Customizable Roller Pattern, 600mm Max Embossing Width, and 20 kN/m Max Linear Pressure
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | OSMANUV |
| Certificação: | ISO9001 |
| Número do modelo: | Especificação |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Embalagem de madeira |
| Tempo de entrega: | 30 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Negociação |
|
Informação detalhada |
|||
| Tamanho personalizado: | ser aceito | Uso: | Impressora de panos |
|---|---|---|---|
| Nome do produto: | Máquina rotativa de transferência de calor | Vantagem: | Bem Posicionamento |
| Potência bruta: | 19kW | Dimensões da máquina: | 2.500 mm x 1.200 mm x 1.500 mm |
| Transportando o modo: | Transferência de berços | Diâmetro: | 600 mm |
| Destacar: | Automatic embossing pressing machine with customizable roller,Rotary heat transfer machine 600mm embossing width,Embossing pressing machine 20 kN/m linear pressure |
||
Descrição de produto

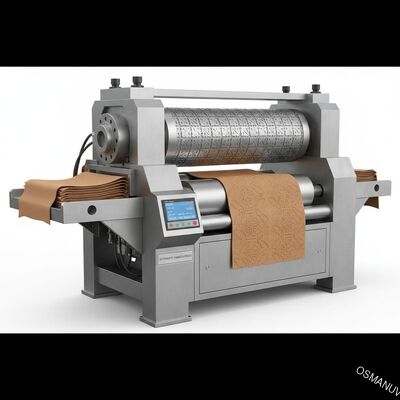

Automatic Embossing Pattern Pressing Machine
This embossing pressing machine creates permanent raised or recessed patterns on flexible and semi-rigid materials. It applies heat and pressure through a patterned roller to transfer textures onto leather, paper, cardboard, non-woven fabric, aluminum foil, and thermoplastic films. The machine is highly customizable in pattern design, roller width, heating profile, and pressure range. Ideal for packaging decoration, automotive interiors, stationery, and luxury goods finishing.
Technical Parameters
| Parameter | Standard Specification | Customizable Options |
|---|---|---|
| Max embossing width | 600 mm | Yes - 300 mm to 1600 mm |
| Material thickness range | 0.1-5 mm | Yes - up to 12 mm (adjustable roller gap) |
| Pattern roller material | Hardened steel (58-62 HRC) | Yes - brass / ceramic / etched aluminum |
| Anvil roller material | Rubber (80 Shore A) | Yes - cotton / polyurethane / steel |
| Max linear pressure | 20 kN/m | Yes - 10-50 kN/m (hydraulic option) |
| Operating temperature | Ambient - 200°C | Yes - up to 300°C (oil heating) |
| Production speed | 0-10 m/min | Yes - 0-20 m/min (servo drive) |
| Pattern depth range | 0.1-1.5 mm | Yes - up to 3 mm (coarse patterns) |
| Power supply | 380V / 50Hz / 3-phase | Yes - 220V / 60Hz or 415V |
| Machine weight | 1200 kg | Yes - compact or heavy-duty frame |
Applications
- Leather goods: shoe upper, belt, handbag, wallet, upholstery
- Paper & stationery: greeting card, notebook cover, gift box, parchment
- Packaging: cosmetic box, wine label, foil stamping base
- Automotive: dashboard skin, door panel trim, seat cover backing
- Textile & non-woven: filter media, medical fabric, carpet backing
- Customizable for roll-to-sheet or single sheet feeding (manual feed table available)
Customization Options
This embossing machine can be fully tailored to your pattern and production requirements:
- Pattern design - Customizable engraving based on your AI/CDR/DXF file (logo, wood grain, carbon fiber, geometric, floral)
- Roller set - Customizable number of pattern rollers (quick-change system for multi-pattern production)
- Registration system - Customizable optical sensor for pre-printed material alignment
- Heating zone length - Customizable pre-heat and post-cool sections
- Safety features - Customizable with light curtain, emergency cord, or dual palm buttons
- Automation level - Customizable from manual loading to fully automatic roll-to-roll
- Color & branding - Customizable RAL paint + OEM logo plate
Key Features
- High-definition embossing - laser-engraved pattern roller for micro-detail reproduction
- Even pressure distribution - crowned roller design to prevent edge-to-center variation
- Digital pressure readout - with programmable pressure profile (customizable option)
- Quick roller change - detachable bearing housing - under 15 minutes
- Anti-wrinkle system - expander roller + edge tension control
- Automatic lubrication - reduces maintenance frequency
- Energy-efficient heating - insulated heating zone with PID control (±2°C)
Support and Services
- Pattern design consultation - free for first 3 patterns (customizable additional pattern fee)
- Sample embossing service - send your material - we emboss and return sample (customizable quantity)
- Remote diagnostics - 24/7 via TeamViewer / WhatsApp (customizable response time SLA)
- Spare parts guarantee - 10+ years availability (customizable spare parts kit upon order)
- On-site commissioning - available (customizable duration: 2-7 days)
- Operator training - video + manual included (customizable on-site training add-on)
Packing and Shipping
Packing:
- Pattern roller individually wrapped with anti-rust oil + foam
- Main machine secured in plywood case with shock absorption
- Customizable with VCI paper, desiccant bags, or container dehumidifier
Shipping: FOB / CIF / EXW / DDP (customizable port: Shanghai / Ningbo / Shenzhen / Tianjin)
Lead time:
- Standard patterns (from existing library): 20-25 working days
- Custom engraved pattern: 30-40 working days (depends on complexity)
- Customizable rush order: additional 20% fee for 15-day delivery
Documents: CE declaration, manual, pattern library CD (customizable certificate: UL / CSA / EAC upon request)
Frequently Asked Questions
Q1: Can I send my own pattern design?
A: Yes. We accept AI, CDR, DXF, or even physical sample. The pattern roller is 100% customizable based on your artwork.
Q2: What materials cannot be embossed?
A: Very brittle materials (thick glass, hard ceramic) or stretchy thin film without backing. For difficult materials, we offer customizable backing layer attachment.
Q3: How deep can the embossing be?
A: Standard depth 0.1-1.5 mm. For deeper embossing (up to 3 mm), we provide customizable coarse pattern rollers and increased pressure system.
