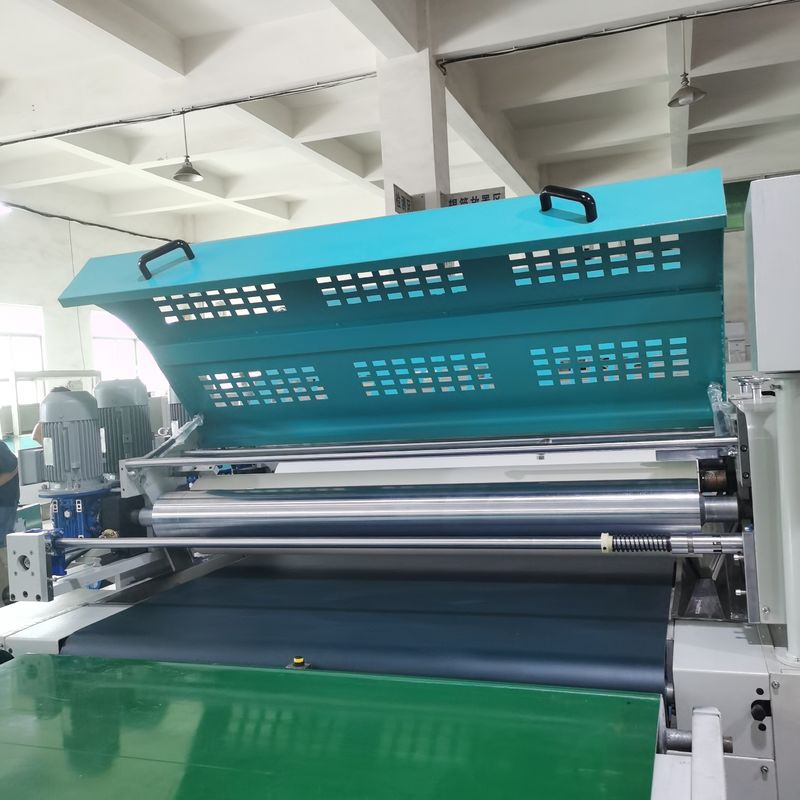

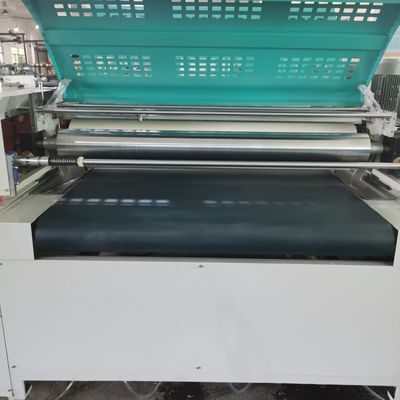

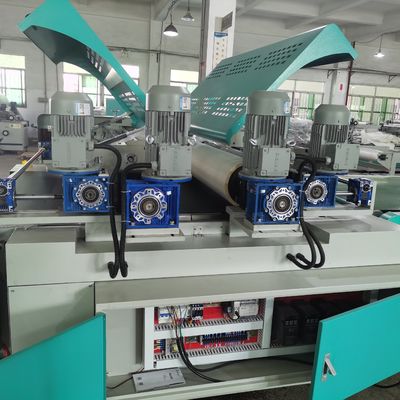

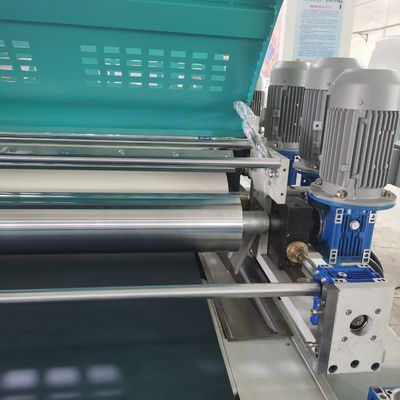

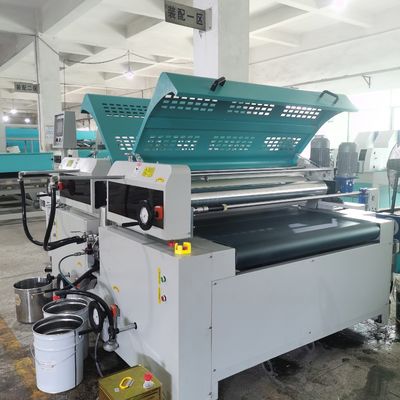

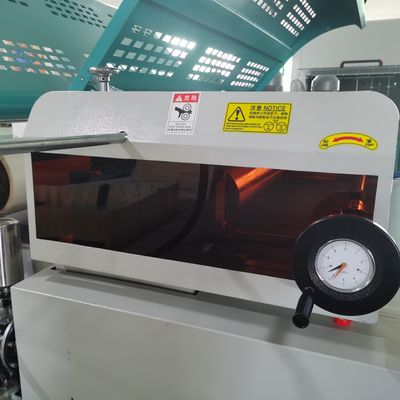

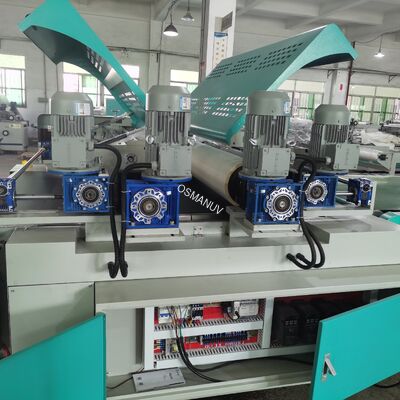

Dual-Roller Coating Machine Plant for Customized Cement Board Finishing | Multi-Layer Application
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | Osmanuv |
| Certificação: | ISO9001 And CE |
| Número do modelo: | 1320 |
| Documento: | Two-roller coating machine.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Caixa de madeira |
| Tempo de entrega: | 45 dias |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | Negociação |
|
Informação detalhada |
|||
| Transportando o sentido: | Da esquerda para a direita. | Tamanho da máquina: | 1500 mm*800 mm*1200 mm |
|---|---|---|---|
| Material de embalagem: | madeira | Tipo de revestimento: | Rolo dobro |
| Método de aquecimento: | Infravermelho | Precisão do revestimento: | Alta precisão |
| Recurso: | Eficiente | ||
Descrição de produto
Dual-Roller Coating Machine Plant for Customized Cement Board Finishing | Multi-Layer Application
Composition of Production Line
The production line consists of:
-
Automatic unwinding system
-
Pre-treatment cleaning unit
-
Dual-roller precision coating station
-
Multi-zone drying oven (electric/gas/infrared)
-
Embossing and patterning unit (optional)
-
Cooling and curing section
-
Automatic cutting or rewinding system
-
PLC integrated control system
Product Description
This intelligent dual-roller coating line is designed for applying functional and decorative coatings to cement fiber boards. It ensures high-precision coating thickness, uniform surface coverage, and excellent adhesion. The line is fully customizable to accommodate various coating materials (water-based, solvent-based, UV-resistant) and board dimensions.
Technical Parameters
| Parameter | Standard Specification | Customization Options |
|---|---|---|
| Max. Board Width | 1800 mm, 1000 mm, 1200 mm | Customizable up to 2500 mm |
| Coating Thickness Range | 0.02–1.0 mm (wet film) | Adjustable via roller gap control |
| Line Speed | 5–30 m/min | Higher speeds available |
| Drying Temperature | 50–200°C (multi-zone control) | Customizable heating sources |
| Coating Roller Material | Chrome-plated steel/silicone | Custom hardness and surface finish |
| Control System | Siemens PLC + HMI touchscreen | Interface language customization |
| Power Supply | 380V/50Hz/3Phase | Adaptable to local standards |
| Total Power Consumption | 100–300 kW (configurable) | Energy-efficient options |
Application
-
Exterior wall cladding panels
-
Interior decorative cement boards
-
Fire-resistant and waterproof boards
-
Acoustic and thermal insulation panels
-
Custom-patterned architectural panels
Customization
We offer tailor-made solutions including:
-
Custom roller designs for specific coating textures
-
Adaptive drying systems for different coatings
-
Integration with existing production lines
-
Specialized control software for unique process requirements
Feature
-
Intelligent Control: Recipe storage and automated parameter adjustment
-
High Precision: Closed-loop coating thickness control system
-
Quick Changeover: Modular design for rapid material switching
-
Energy Saving: Heat recovery system available
-
Durable Construction: Corrosion-resistant materials for longevity
Support and Services
-
24-month warranty on main components
-
Remote monitoring and troubleshooting
-
On-site installation and training services
-
Spare parts supply guarantee
-
Process optimization consulting
Packing and Shipping
-
Export-standard wooden crates
-
Waterproof and shock-proof packaging
-
FOB/CIF shipping terms available
-
Worldwide logistics support
FAQ
Q: Can this line handle both continuous and patterned coating?
A: Yes, with our customizable roller system and optional embossing unit.
Q: What is the minimum order quantity for a customized line?
A: We provide solutions for both pilot-scale and mass production needs.
Q: Do you provide coating formulation technical support?
A: Yes, we offer comprehensive technical support including coating material selection guidance.
Q: How long is the delivery time for a customized configuration?
A: Typically 90-120 days after final confirmation, depending on customization complexity.
