All-in-One Two Roll Coating Solution for PVC & ACP: Achieve Cost-Effective, Flawless Paint Finishes with Customizable Settings
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | OSMANUV |
| Certificação: | ISO9001 |
| Número do modelo: | OSM-GT-1320 |
| Documento: | Two-roller coating machine.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Caixa de madeira |
| Tempo de entrega: | 30 a 45 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Negociação |
|
Informação detalhada |
|||
| Custo de revestimento: | Baixo custo | Método de revestimento: | Revestimento de rolo |
|---|---|---|---|
| Potência total: | 9kW | Alimentação eléctrica: | 220V/380V, 50Hz/60Hz |
| Controle de temperatura: | Sistema de aquecimento opcional para revestimentos sensíveis à temperatura | Método de revestimento: | Revestimento de rolo |
| Nome do produto: | Equipamento de revestimento de rolos | Largura de trabalho efetiva: | 1320mm |
Descrição de produto
All-in-One Two Roll Coating Solution for PVC & ACP: Achieve Cost-Effective, Flawless Paint Finishes with Customizable Settings
Product Description:

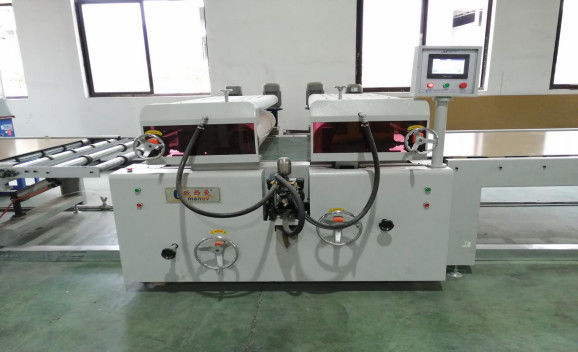

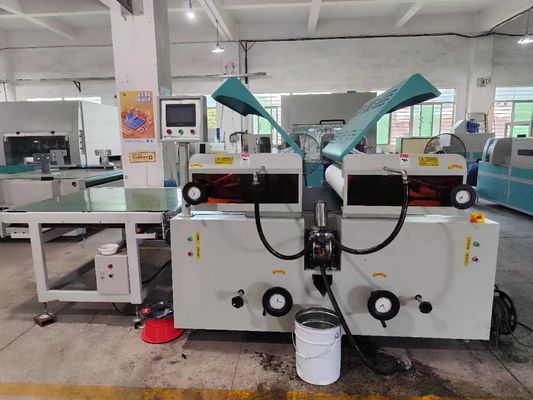

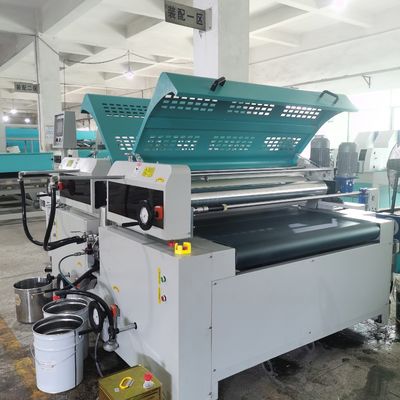

This versatile two-roll coater is designed for high-efficiency paint and coating application on a variety of flexible and rigid sheets, including PVC and Aluminum Composite Panels (ACP). Its robust design and precise metering ensure a perfect, repeatable finish for both decorative and protective layers. The machine is highly customizable to suit specific paint viscosities and application needs.
Composition of Production Line:
-
Manual Loading / Automatic Feeder
-

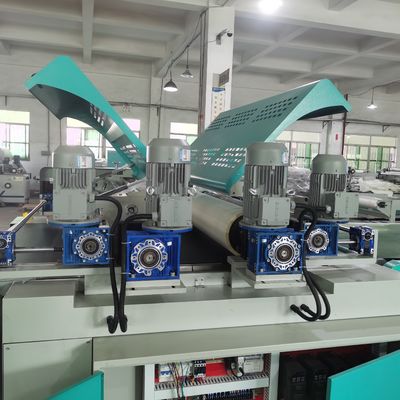

Two-Roller Coating Unit with Precision Gap Control
-
Coating Thickness Monitoring System (Optional)
-
Multi-Stage Support Conveyor
-
Transition Conveyor to Oven
-
Control Panel with Speed & Gap Display
Technical Parameters:
| Parameter | Details |
|---|---|
| Model | TRC-VS Series (Customizable Configuration) |
| Applicable Material Width | Up to 1600mm (Customizable) |
| Coating Speed | 5 - 50 m/min (Variable Frequency Drive) |
| Roller Diameter | 200mm (Standard, other sizes customizable) |
| Adjustable Gap | 0.01 - 5mm (Precision Micrometer) |
| Main Motor Power | 5.5 kW (Standard) |
| Overall Dimension | Customized based on configuration |
Application:
Precise paint application for PVC sheets, ACP panels, signboards, decorative laminates, and other panel materials.
Customization:
The machine can be customized for specific roller diameters, surface finishes, motor power, and control options to match your unique production requirements.
Feature:
-
Versatile design for various coatings and substrates.
-
Precision gap control for accurate coating weight.
-
Robust and durable construction.
-
Customizable roller options for different finishes (gloss, matte, textured).
-
Easy to operate and maintain.
Support and Services:
On-site installation and training available. Comprehensive warranty and spare parts support.
Packing and Shipping:
All parts are securely packed in waterproof and shock-proof materials. Shipped in knocked-down (KD) modules for easy on-site assembly.
FAQ:
-
Q: Can we achieve different coating finishes with this machine?
A: Yes, by customizing the roller surface texture (e.g., polished, matte, engraved), you can achieve a wide range of finishes. -
Q: Is training provided for our operators?
A: Yes, we provide detailed on-site training for your production team.
