Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Detalhes do produto:
| Lugar de origem: | CHINA |
| Marca: | OSMANUV |
| Certificação: | CE |
| Número do modelo: | OSM-SXT-450T |
| Documento: | CE-Single station spin caot...ne.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | Embalagem de madeira |
| Tempo de entrega: | 30 dias |
| Termos de pagamento: | T/T. |
| Habilidade da fonte: | Negociação |
|
Informação detalhada |
|||
| Nome do produto: | Máquina de revestimento por rotação de estação única | Especificação: | 700mm L*420mm W*1135mm h |
|---|---|---|---|
| Peso: | Peso líquido: 120 kg; Peso bruto: 130 kg | Tensão: | 380V 50Hz |
| Poder: | 500 W | Velocidade da rotação: | 1150 rpm (velocidade máxima) |
| Garantia: | 1 ano | ||
Descrição de produto
Eco-Centric Pulp Mold Coating Machine for Bio-Based Coating Application on Straw and Bamboo Fiber Products
Product Description

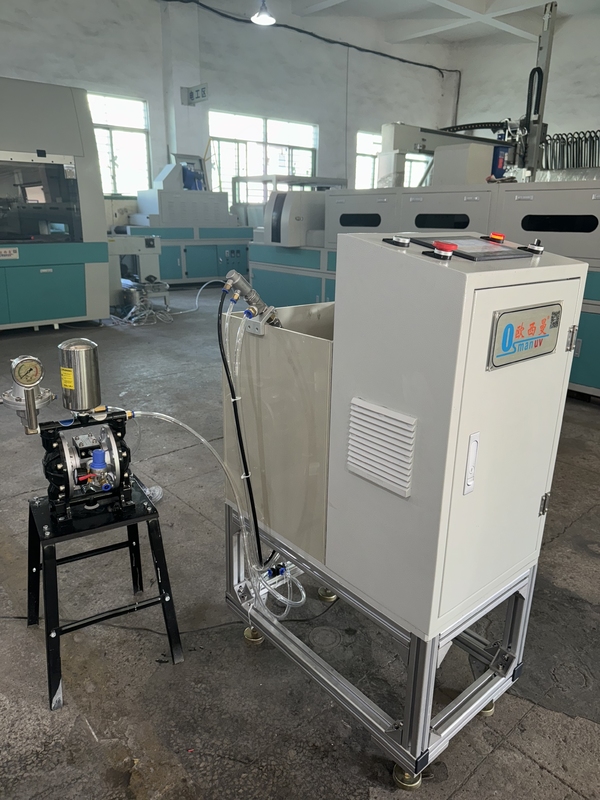

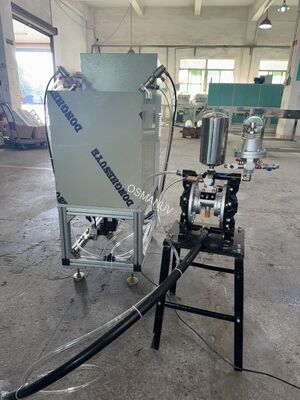

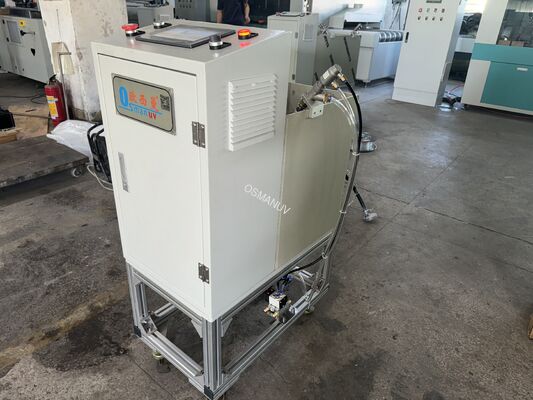

This eco-centric single-station coating machine is specifically designed for applying bio-based coatings to sustainable pulp molds from straw, bamboo, and sugarcane bagasse. It supports the production of 100% compostable and biodegradable packaging by ensuring an even, effective barrier layer without compromising environmental credentials. The system is highly customizable for various bio-coating viscosities and curing requirements.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-SXT-450T |
| Power Supply | 380V/50Hz |
| Power Consumption | 2.2 kW (Energy Efficient) |
| Heating Option | Customizable IR pre-drying module available |
| Coating Capacity | 100-400 pieces/hour |
| Rotation Speed Range | 50-1200 RPM (optimized for bio-coatings) |
| Control System | Microprocessor with simple interface |

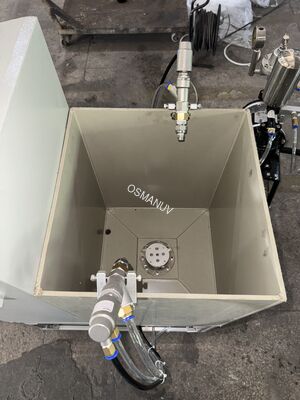

| Coating Reservoir | Easy-clean, corrosion-resistant tank |
| Dimensions (LxWxH) | 1400mm x 1200mm x 1500mm |
Application
-
Perfect for applying PLA or other bio-polymer coatings to straw and bamboo pulp-based products.
-
Coating for fully compostable sugarcane bagasse tableware requiring certified coatings.
Feature
-
Bio-Coating Optimized: Designed for the specific flow characteristics of bio-based coatings.
-
Easy Cleaning: Simplified design with minimal parts for quick and easy cleaning between batches.
-
Low Energy Consumption: Focuses on reducing the overall carbon footprint of the coating process.
-
GreenTech Compliance: Ideal for manufacturers aiming for BPI or OK Compost INDUSTRIAL certifications.
Customization
Key customizable features include:
-
Drying Integration: Can be customized with integrated IR or hot air modules for in-line pre-drying.
-
Material Compatibility: Adjustable parameters for different bio-coating types and viscosities.
-
Safety Features: Enhanced safety interlocks can be added as per request.
Support and Services
Dedicated support for sustainable packaging producers, including assistance with coating selection and process optimization for bio-materials.
Packing and Shipping
All components are packed with recyclable and biodegradable materials where possible, aligned with our commitment to sustainability.
FAQ
-
Q: Can this machine handle PLA coatings effectively?
-
A: Absolutely. The rotation speed and application process are customizable to handle the specific viscosity and drying behavior of PLA coatings.
-
-
Q: Is the machine suitable for a lab or R&D setting?
-
A: Yes, its small footprint and programmable recipes make it ideal for both R&D and small-batch production.
-
