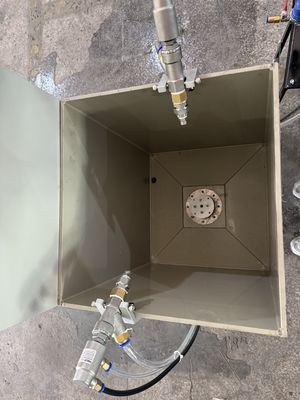

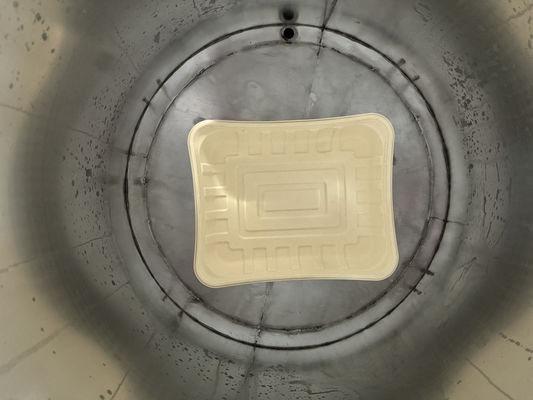

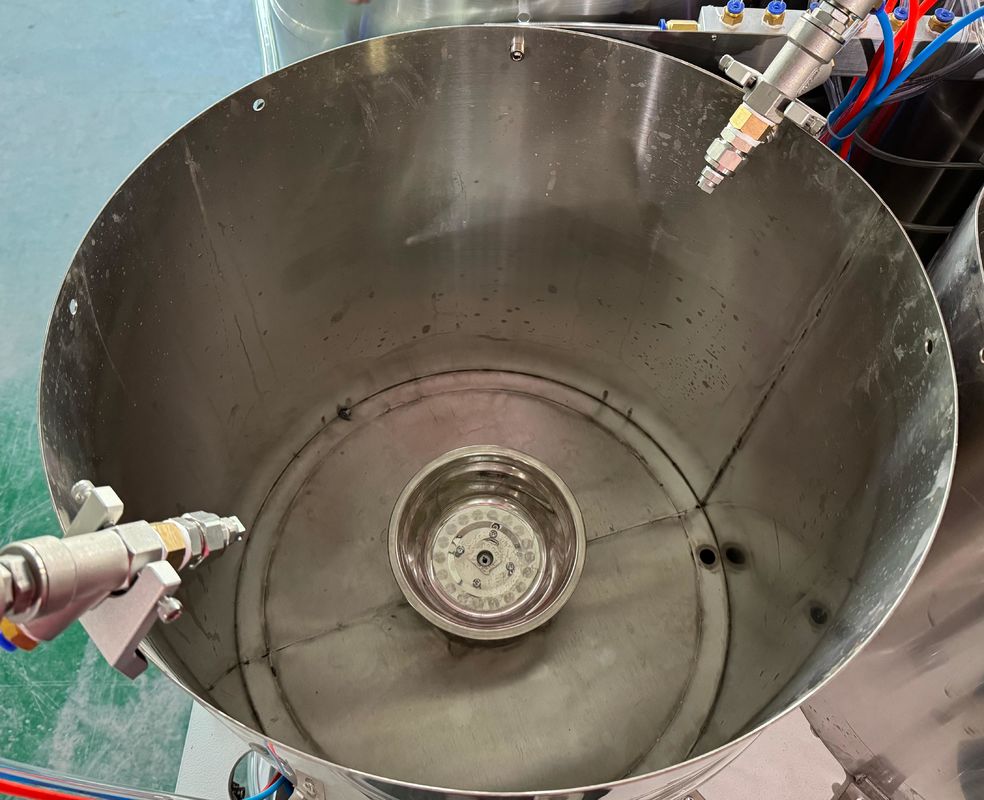

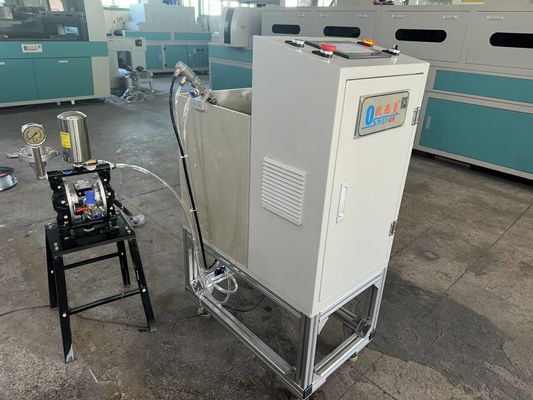

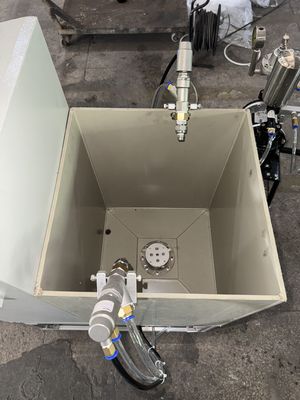

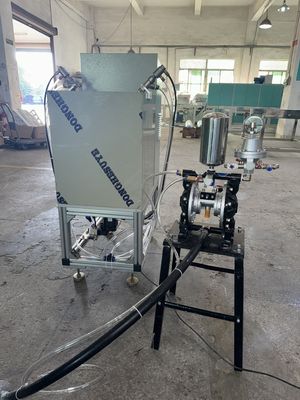

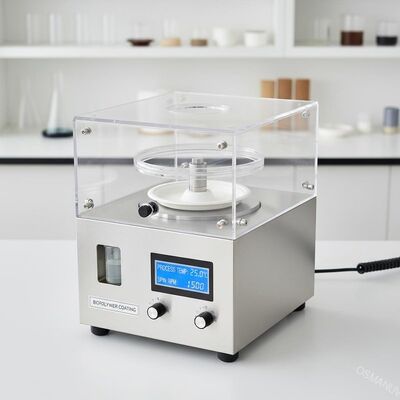

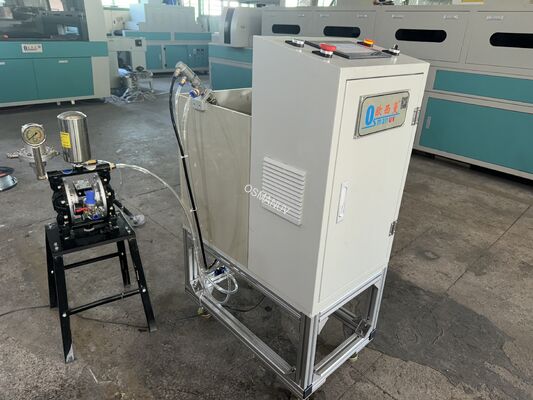

Bagasse Tableware Single Station Spin Coating Sample Testing Machine for Biodegradable Materials
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | OSMANUV |
| Certificação: | CE |
| Número do modelo: | OSM-XT-450T |
| Documento: | CE-Single station spin caot...ne.pdf |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | Negotation |
| Detalhes da embalagem: | Embalagem de madeira |
| Tempo de entrega: | 30 dias |
| Habilidade da fonte: | Negociação |
|
Informação detalhada |
|||
| Nome do produto: | Máquina de revestimento por rotação de estação única | Dimensão (C*L*A): | Tamanho personalizado, 700 mm L * 420 mm W * 1135 mmH Caixa: 400 mm * 400 mm * 500 mm |
|---|---|---|---|
| Velocidade de rotação: | ajustável, 1150 rpm (velocidade máxima) | Tensão: | 380V/50Hz |
| Peso: | Peso líquido: 120 kg; Peso bruto: 130 kg | Poder: | 500W |
| Garantia: | 1 ano | Doença: | NOVO |
Descrição de produto
Bagasse Tableware Single Station Spin Coating Sample Testing Machine for Biodegradable Materials
Product Description
This single station spin coater is specifically designed for coating sample development and performance testing on bagasse tableware and food packaging products. The equipment enables precise evaluation of coating formulations through controlled spin coating processes using eco-friendly water-based coatings.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-XT-450T |
| Maximum Sample Diameter | 380 mm (Customizable) |
| Rotation Speed Range | 100-1150 RPM (Customizable) |
| Coating Uniformity | ±2% thickness variation |
| Control Accuracy | ±0.5% speed stability |
| Power Requirements | 380V/50Hz |
Application
Coating sample preparation and performance testing for bagasse tableware, food containers, and sustainable packaging prototypes.
Customization
-
Customizable sample holding fixtures for various shapes
-
Customizable coating thickness monitoring system
-
Customizable data logging and export functions
Feature
-
Precise coating thickness control
-
Excellent process repeatability
-
User-friendly operation interface
-
Compact laboratory design
Support and Services
-
Installation and commissioning support
-
Operation training program
-
12-month warranty coverage
-
Technical application support
Packing and Shipping
-
Laboratory-grade protective packaging
-
Shock-absorbent foam materials
-
Climate-controlled shipping option
FAQ
Q: What coating thickness range can be achieved?
A: The system can achieve coating thickness from 5 to 200 microns with high uniformity and repeatability.
