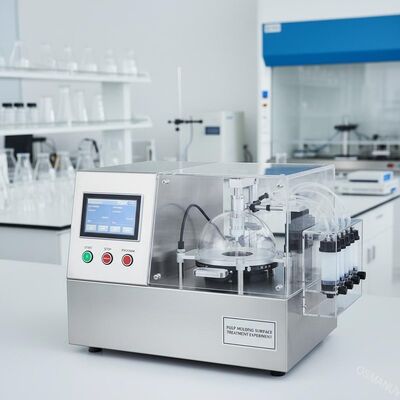

Multi-Function Integrated Single-Station Spin Coating Workstation for Comprehensive Pulp Molding Surface Treatment Experiment
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | OSMANUV |
| Certificação: | ISO9001 |
| Número do modelo: | OSM-XT-450T |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | negotiable |
| Detalhes da embalagem: | caixa de madeira |
| Tempo de entrega: | 30 a 45 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Negociação |
|
Informação detalhada |
|||
| Área de revestimento: | Produto moldeado em celulose no interior | Indústrias Aplicáveis: | Embalagem, Indústria Alimentícia, Eletrônica |
|---|---|---|---|
| Principais argumentos de venda: | Revestimento de celulose | Confiabilidade do revestimento: | Alta confiabilidade |
| Substrato: | Placa de cimento de fibra | Modelo: | OSM-XT-450T |
| Controle de espessura de revestimento: | Ajustável | Método de secagem: | Cura infravermelha |
| Destacar: | single-station spin coating workstation,pulp molding surface treatment machine,multi-function integrated coating workstation |
||
Descrição de produto
Multi-Function Integrated Single-Station Spin Coating Workstation for Comprehensive Pulp Molding Surface Treatment Experiment
Product Description:
This integrated workstation combines spin coating with pre-and post-treatment functions in a single, compact unit. It is designed for comprehensive lab-scale research on the entire surface treatment chain for pulp molding, from plasma activation to coating and IR drying.
Technical Parameters:
| Item | Parameter | Remarks |
|---|---|---|
| Core Coating Module | Programmable spin coater (200-8,000 rpm) | As standard in Model 2 |
| Pre-Treatment Module | Integrated atmospheric plasma cleaner | Customizable plasma head coverage |
| Post-Treatment Module | Integrated IR heating zone above chuck | Customizable wavelength & power |
| Chamber Environment | Optional transparent enclosure for solvent control | Customizable with extraction ports |

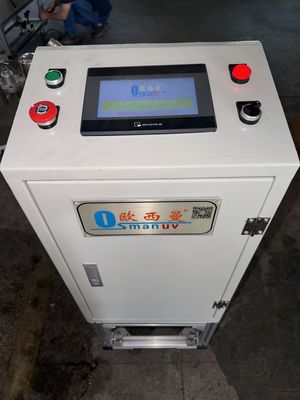

| Control System | Unified touchscreen controlling all modules | Sequential process programming |
| Power Requirements | 220V, 15A dedicated circuit | |
| Footprint | 600 x 500 x 500 mm | Integrated design saves space |
Composition of Production Line:
N/A (Integrated workstation). Comprises: Base frame with unified control system, Atmospheric plasma treatment head, High-precision spin coating module with chuck, Short-wave IR heating lamp array, Optional safety/environmental enclosure.
Application:
Advanced laboratory research on complete surface engineering for high-performance pulp molding products. Processes include surface activation for adhesion promotion, precise functional coating application, and rapid in-situ drying/curing.
Customization:
This is a modular platform. Users can select and customize which modules to integrate (e.g., plasma only, IR only, or both). The process sequence and parameters for each module are fully customizable within the unified software.
Feature:
"All-in-one" design eliminates sample transfer between equipment, enhancing experiment efficiency and consistency. Enables study of synergies between surface activation, coating, and curing.
Support and Services:
Dedicated project engineer for configuration, on-site installation & training, extended warranty, and joint application development support.
Packing and Shipping:
Heavy-duty wooden crate with custom foam inserts for each module. Full shipping and customs clearance support provided.
FAQ:
Q: Can I start with just the spin coater and add modules later?
A: Yes, the platform is designed for modular expansion. Future integration of customized modules is possible.
Q: How effective is the plasma for porous pulp surfaces?
A: It effectively treats the top surface layer. We offer customized nozzle designs and process protocols for optimal results on fibrous materials.
Q: What is the typical lead time for such an integrated system?
A: Lead time is typically 30-45 days after final configuration approval, due to system integration and testing.
