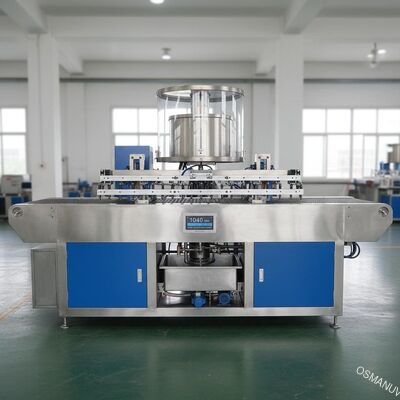

High-Speed Fully Automatic Spin Coater for Pulp Molding with 1040 mm Max Coating Width
Detalhes do produto:
| Lugar de origem: | China |
| Marca: | OSMANUV |
| Certificação: | ISO9001 |
| Número do modelo: | Especificação |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | Negociável |
| Detalhes da embalagem: | Embalagem de madeira |
| Tempo de entrega: | 30-45 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | Negociação |
|
Informação detalhada |
|||
| Cabeças de cortina: | 1/2 | Aplicativo: | Indústria Gráfica, Embalagem, Eletrônica |
|---|---|---|---|
| Largura máxima do revestimento: | 1040 milímetros | Precisão de corte: | ±0,2 mm |
| Automação de Revestimento: | Alta Automação | Compatibilidade de materiais: | Papel, cartão, plástico, metal |
| Garantia: | 1 ano | Velocidade de revestimento: | 0-10 metros/min |
Descrição de produto

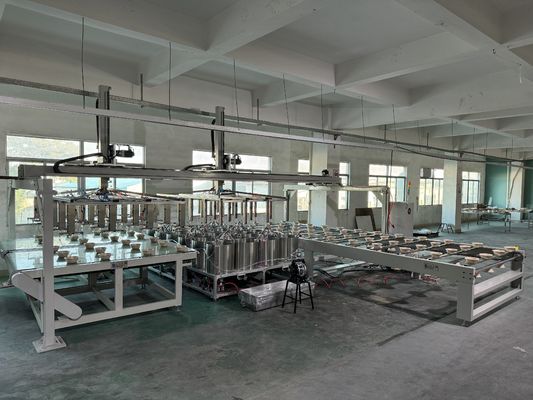

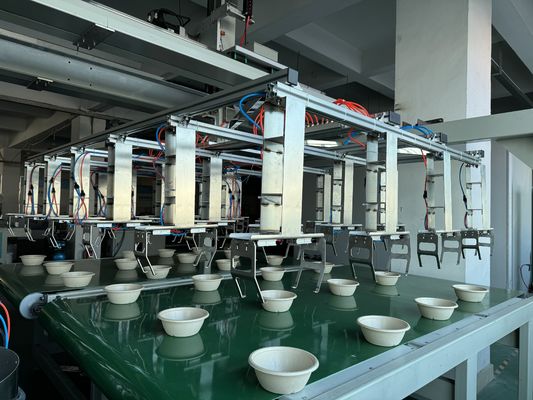

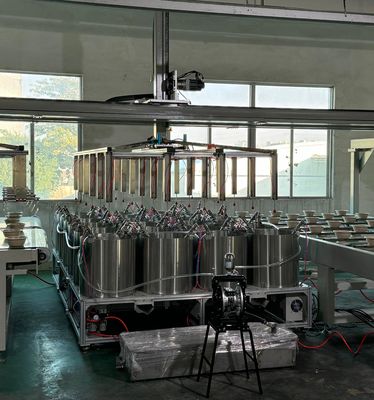

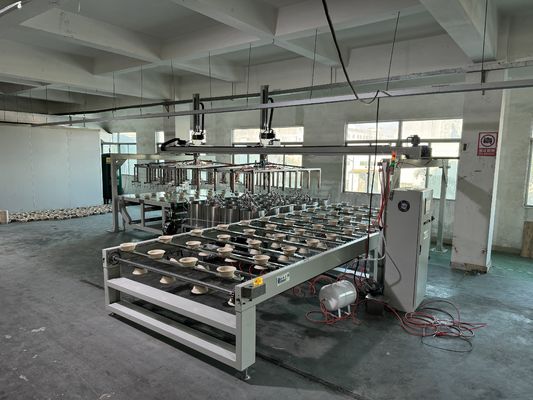

High-Speed Pulp Molding Spin Coater – Fully Automatic Production Line Integration
Product Overview
This high-speed spin coater is designed for water-based or oil-based coating application onto molded pulp products (trays, bowls, containers). Centrifugal force ensures uniform coating thickness (<2% variation). Output up to 30 pieces/min.
Technical Parameters
| Parameter | Value |
|---|---|
| Max. product size (L×W) | 400 × 300 mm (customizable) |
| Coating material | Water-based / oil-based (customizable) |
| Spin speed range | 100 - 1,500 RPM (adjustable) |
| Coating thickness | 0.02 - 0.50 mm |
| Drying method | Infrared / hot air (customizable) |
| Power supply | 380V / 50Hz (customizable) |
Applications

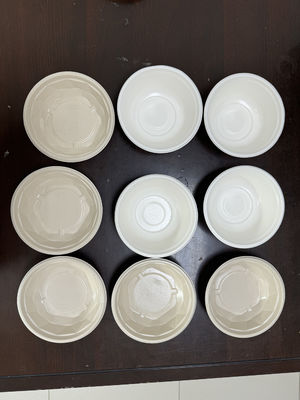

Disposable tableware coating (waterproof/oil-proof), egg tray surface treatment, industrial packaging pulp molding, and food-grade container inner coating.
Customization Options

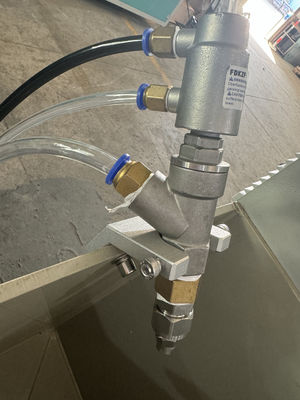

Customizable spin bowl diameter, spray nozzle type (airless / HVLP), conveyor width, drying zone length, and PLC brand.
Key Features
- Centrifugal edge removal to prevent dripping
- Anti-corrosion stainless steel bowl
- Recipe storage for 100+ product types
- Quick-release tooling for mold change (<5 min)
Support and Services
On-site commissioning, operator training (2 days), remote diagnostics via VPN, and 12-month parts warranty.
Packing and Shipping
Stretch-wrapped with VCI anti-rust paper + plywood case. Shipped by sea (FCL) or air (express).
Frequently Asked Questions
Q: Can it coat deep-cavity bowls?
A: Yes, with customizable rotational profile and nozzle positioning.
Deseja saber mais detalhes sobre este produto
